Car Paint Thickness Gauge

Car Paint Tester Introduction

How it helps to identify a repaired part of a vehicle?
Most of the original car paint coats have thickness of 0.1-0.15mm, and everything is above 0.2mm is an indicator that the part has been repaired (repainted). Another thing to look at is the homogeneity of paint coat. The original factory car paint has the same thickness on different parts of car body.

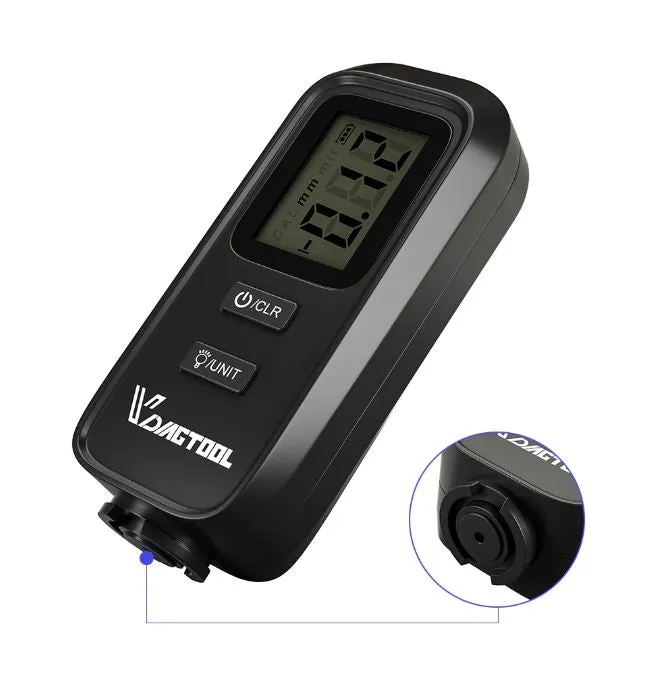

The Car Paint Tester is a portable coating thickness gauge,which can measure the thickness of non-metallic coating(such as paint,film,etc.) nn metal substrate quickly,non destructively,and accurately. It is mainly used to measure the thickness of the vehicle's surface paint and other coating measurement.

Car Paint Tester Operation Instructions

1.Measurement preparation

Open battery cover and load two CR2032 button batteries (Included)

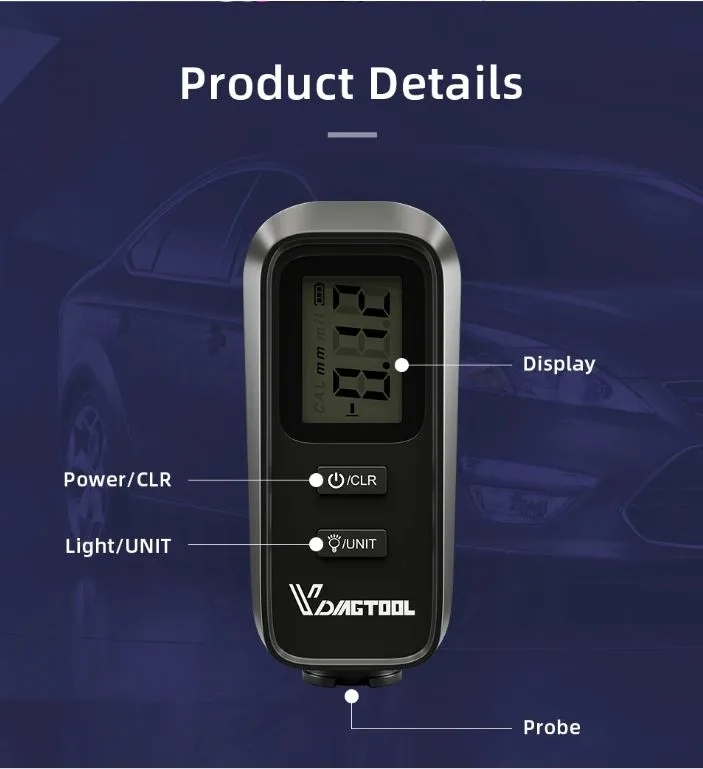

2.Turn on/off

Leave the instrument hang in the air and press"CLR"button to turn it on,LCD full screen display,which means it enters the measurement state.Then long press"CLR"button to turn it off.

Note:Keep it away from the substrate when starting up.

3.Measurement

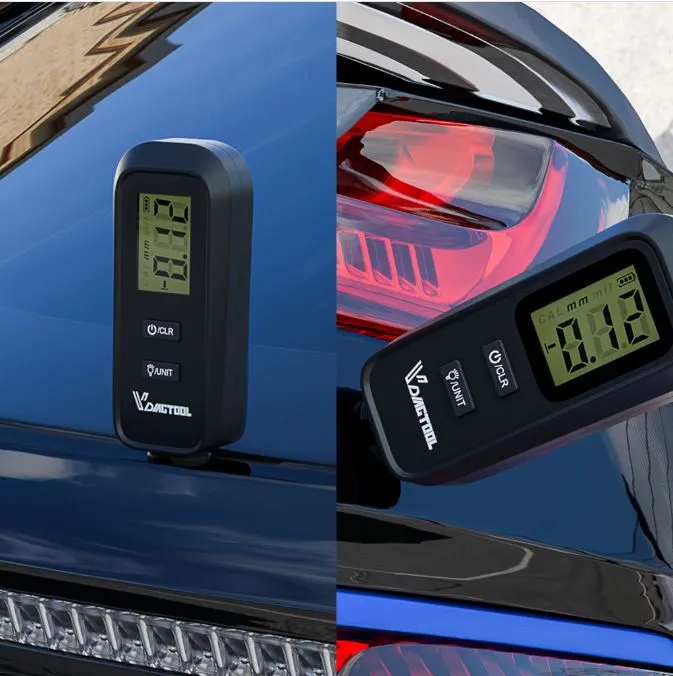

Press the probe onto the coated metal substrate lightly,ensure that the instrument should be perpendicular to the surface of the object that being measured.

Note:When the probe was pressed on the substrate,the LCD will display"---",then you must wait unit the measurement value displayed the LCD,then remove it from the substrate.If removing before a value is displayed,it will display the last measured value.

4.Unit selection
After start-up,short press"UNIT"button to select measurement unit mm or mil.

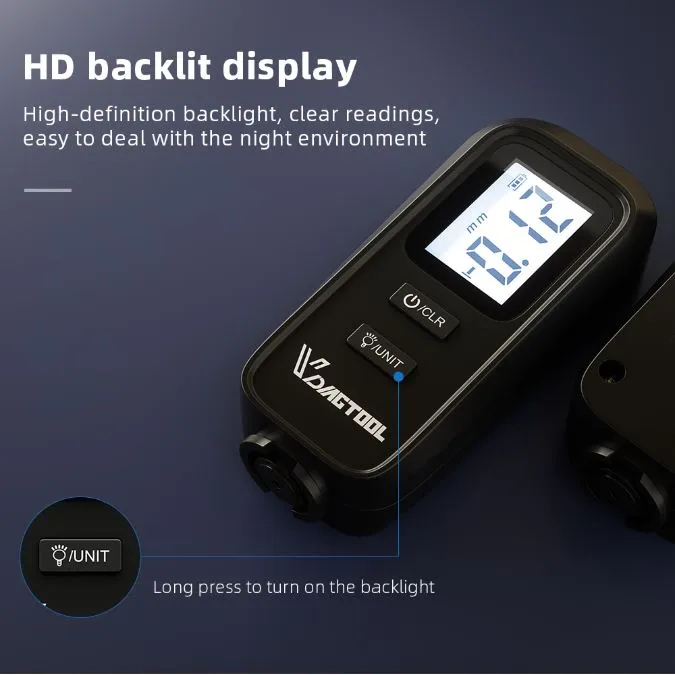

5.LCD backlight
After start-up,long press"UNIT"button to turn on/off the backlight.

6.Clear screen data
After start-up,press"CLR"button to clear the data displayed on LCD screen.
